BLMT
SMICO
Availability: | |
---|---|

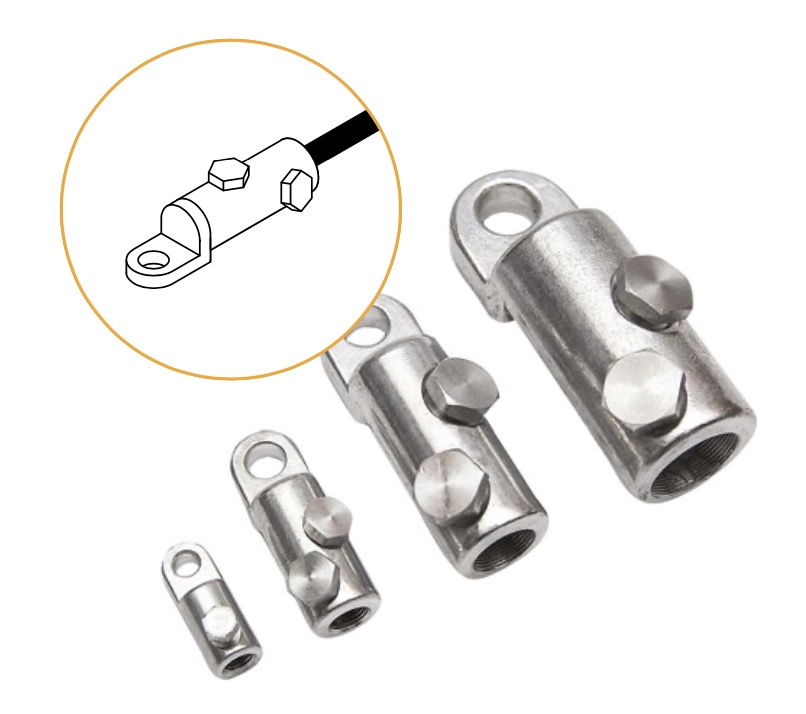

SMICO mechanical connectors and repair sleeves aredesigned for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm² to 400 mm². All products consist of atin-plated body, shear-head bolts and inserts for small conductor sizes.
Made of special aluminium alloy, these contact bolts are double shear-head bolts with hexagon heads. The bolts are treated with a highly lubricating agent. Contact bolts are irremovable once their heads have been sheared off. The Lug body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.
Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes. The bolted fitting featured herein was developed specifically for use in medium voltage cable accessories up to 42 kV. They may also be used in the 1 kV range.
Before using mechanical connectors in cable accessories, confirm that they are suitable for the given application and if necessary consult the manufacturer.
Description | Cross Sectional Range (mm2) | Dimensions (mm) | Contact Bolts Quantity | Head Size AF (mm) | ||||
D1 | D2 | L1 | L2 | LB | ||||
BLMT-16/70-13 | 16-70 | 24 | 12.5 | 72 | 48 | 13 | 2 | 13 |
BLMT-25/95-13 | 25-95 | 24 | 12.5 | 60 | 30 | 13 | 1 | 13 |
BLMT-35/150-13 | 35-150 | 28 | 16 | 86 | 35 | 13 | 1 | 17 |
BLMT-95/240-13 | 95-240 | 33 | 20 | 112 | 60 | 13 | 2 | 19 |
BLMT-120/300-13 | 120-300 | 37 | 24 | 115 | 65 | 13 | 2 | 22 |
BLMT-185/400-13 | 185-400 | 42 | 25.5 | 137 | 80 | 17 | 3 | 22 |
BLMT-500-630-13 | 500-630 | 50 | 33 | 150 | 95 | 21 | 4 | 27 |
SMICO mechanical connectors and repair sleeves aredesigned for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm² to 400 mm². All products consist of atin-plated body, shear-head bolts and inserts for small conductor sizes.
Made of special aluminium alloy, these contact bolts are double shear-head bolts with hexagon heads. The bolts are treated with a highly lubricating agent. Contact bolts are irremovable once their heads have been sheared off. The Lug body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.
Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes. The bolted fitting featured herein was developed specifically for use in medium voltage cable accessories up to 42 kV. They may also be used in the 1 kV range.
Before using mechanical connectors in cable accessories, confirm that they are suitable for the given application and if necessary consult the manufacturer.
Description | Cross Sectional Range (mm2) | Dimensions (mm) | Contact Bolts Quantity | Head Size AF (mm) | ||||
D1 | D2 | L1 | L2 | LB | ||||
BLMT-16/70-13 | 16-70 | 24 | 12.5 | 72 | 48 | 13 | 2 | 13 |
BLMT-25/95-13 | 25-95 | 24 | 12.5 | 60 | 30 | 13 | 1 | 13 |
BLMT-35/150-13 | 35-150 | 28 | 16 | 86 | 35 | 13 | 1 | 17 |
BLMT-95/240-13 | 95-240 | 33 | 20 | 112 | 60 | 13 | 2 | 19 |
BLMT-120/300-13 | 120-300 | 37 | 24 | 115 | 65 | 13 | 2 | 22 |
BLMT-185/400-13 | 185-400 | 42 | 25.5 | 137 | 80 | 17 | 3 | 22 |
BLMT-500-630-13 | 500-630 | 50 | 33 | 150 | 95 | 21 | 4 | 27 |
