AMO Aluminum Shear Bolt Connector Mechanical Cable Lug

Share to:

  • AMO

  • SMICO

  • 700000/month

Availability:
Inquire Add to Basket

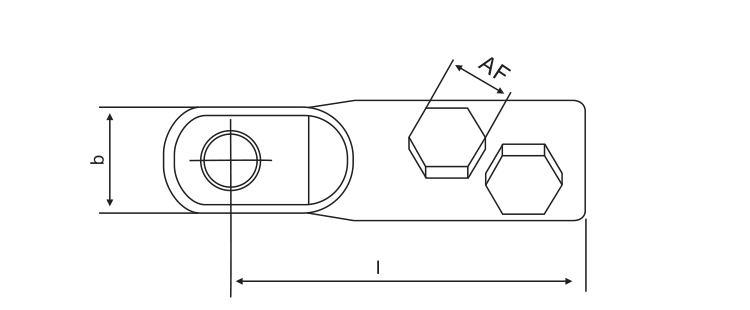

AMO mechanical lugs and connectors

Characteristics:
1.Total cross-section:25-400mm
2.Pr-engineered design for perfect fit in medium voltage cable accessories upto 42KV.
3.Lugs are suitable for out door and indoor applications.
4.Connector and lug bodies are made of a high-tensile ,tin plated aluminium alloy.
5.Use in cable accessories.

Cable Size(mm2)

Size of Bolt

Code

Dimension(mm)

Bolt Quantity

B

L

AD

25-95

M16

AMO25/95-16

34

80

13

1

95-240

M16

AMP95/240-16

34

120

19

2

185-300

M16

AMO185/300-16

34

115

22

2

240-400

M16

AMO240/400-16

34

115

24

3
