DTL-S
SMICO
16-500mm²
Availability: | |
---|---|
Bimetallic Lugs are mostly useful where an aluminum cable has to be terminated by a copper bus bar or copper contact. If Cable Lugs of only copper or aluminum are used , a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm thereby achieving the best possible transition between barrel & palm.
Our range of Aluminum & Copper Bimetallic Lugs is having following advantages.
· Material : Conductivity Aluminum Barrel of 60% IACS & Copper Palm 97% IACS.
· Final Metal State : Fully Annealed.
· Jointing Method : Friction Welding
· Sizes : 16 Sqmm to 500 Sqmm
Applications :
MV Terminations
LV Connections on Bus Bar.
Advantages of bimetallic lugs:
· Safe & low cost both in and use.
· All copper products are electro-tinned to BS standard and prevents it from corrosion and oxidation.
· PVC insulation is provided to terminals for exceptional di-electric strength & for supporting
· Entry to the wire barrel is shock-proof, or bell mouthed for faster and easier conductor entry.

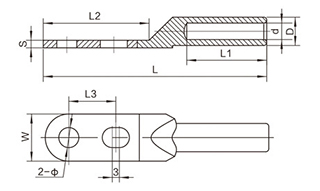

Model | Dimensions(mm) | ||||||||
Dia | D | d | L | L1 | L2 | L3 | W | S | |
DTL-16S | 8.4 | 10 | 5.5 | 90 | 32 | 45 | 20 | 18 | 3 |
DTL-25S | 8.4 | 12 | 7 | 93.5 | 38 | 44 | 20 | 18 | 3.2 |
DTL-35S | 10.5 | 14 | 8.5 | 104 | 42 | 48.5 | 20 | 20 | 3.6 |
DTL-50S | 10.5 | 16 | 9.5 | 112 | 46 | 50 | 20 | 23 | 4 |
DTL-70S | 12.5 | 18 | 12 | 125 | 47 | 59 | 25 | 26 | 4.5 |
DTL-95S | 125 | 21 | 13 | 136 | 53 | 60 | 25 | 28 | 4.8 |
DTL-120S | 14.5 | 23 | 15 | 145 | 55 | 69 | 30 | 30 | 5.5 |
DTL-150S | 14.5 | 25 | 16 | 150 | 55 | 70 | 30 | 34 | 6 |
DTL-185S | 14.5 | 27 | 18 | 162 | 62 | 76 | 35 | 37 | 6.5 |
DTL-240S | 14.5 | 30 | 20 | 170 | 65 | 78 | 35 | 40 | 7 |
DTL-300S | 16.5 | 34 | 23 | 190 | 72 | 87 | 40 | 45 | 8.5 |
DTL-400S | 16.5 | 38 | 26 | 195 | 75 | 87 | 40 | 50 | 8.5 |
DTL-500S | 21 | 42 | 29.5 | 225 | 80 | 110 | 45 | 60 | 9.5 |
