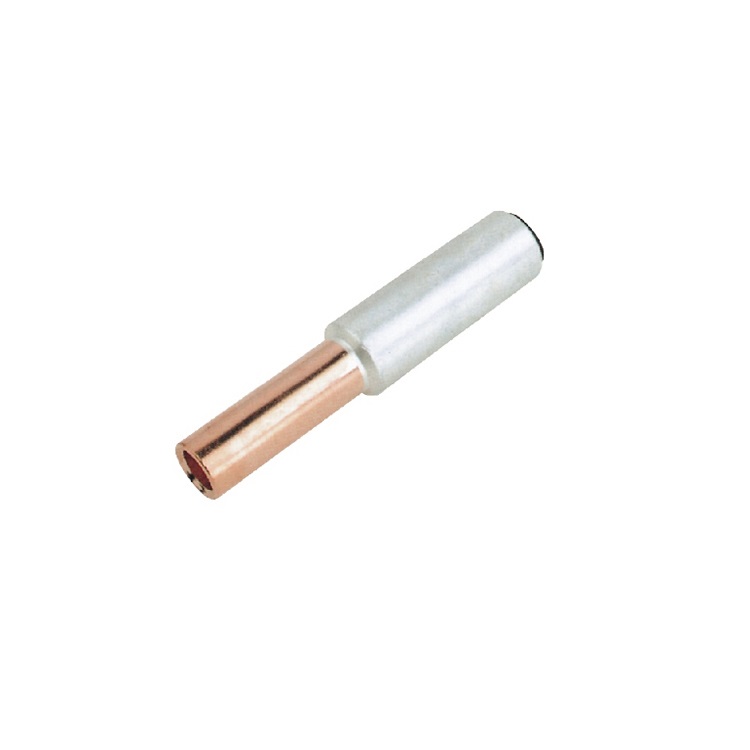

GTL
SMICO
25-300mm2
700000/month
Availability: | |
---|---|
Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:Due to the coupling effect when aluminium comes in contact with copper corrosion will happen in a short time currently the best solution os to use aluminium-copper bimetal connectors,A bimetal link should be used for joint the friction welding is well done and its aluminium barrel capped is filled with joint compaound to avoid oxidization

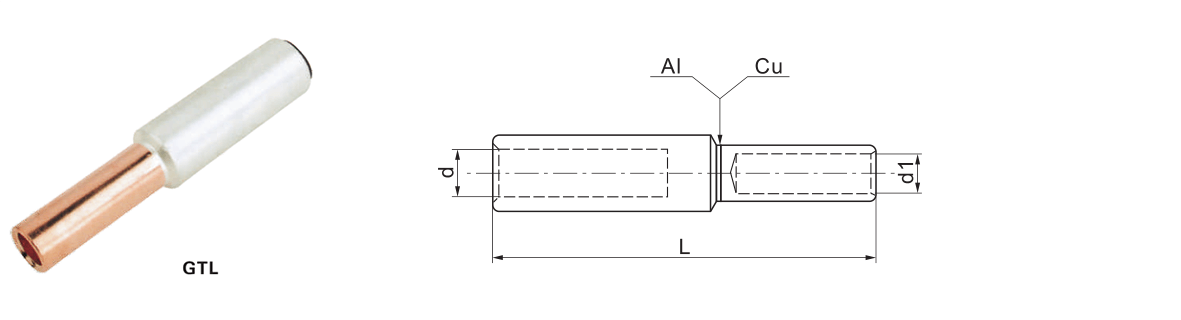

Type | Dimensions(mm) | ||
L | d | d1 | |
GTL-AL25/CU16 | 70 | 6.8 | 5.5 |
GTL-AL35/CU16 | 76 | 8 | 5.5 |
GTL-AL35/CU25 | 82 | 8 | 7 |
GTL-AL50/CU25 | 85 | 9.8 | 7 |
GTL-AL50/CU35 | 90 | 9.8 | 8.2 |
GTL-AL70/CU35 | 95 | 11.2 | 8.2 |
GTL-AL70/CU50 | 100 | 11.2 | 10 |
GTL-AL95/CU50 | 105 | 13.2 | 10 |
GTL-AL95/CU70 | 110 | 13.2 | 11.5 |
GTL-AL120/CU70 | 116 | 14.7 | 11.5 |
GTL-AL120/CU95 | 118 | 14.7 | 13.5 |
GTL-AL150/CU95 | 120 | 16.3 | 13.5 |
GTL-AL150/CU120 | 122 | 16.3 | 15.5 |
GTL-AL185/CU120 | 128 | 18.3 | 15.5 |
GTL-AL185/CU150 | 130 | 18.3 | 17 |
GTL-AL240/CU150 | 132 | 21 | 17 |
GTL-AL240/CU185 | 135 | 21 | 19 |
GTL-AL240/CU240 | 140 | 121 | 21.5 |
GTL-AL300/CU240 | 145 | 23.3 | 21.5 |
GTL-AL300/CU300 | 150 | 23.3 | 24.5 |
