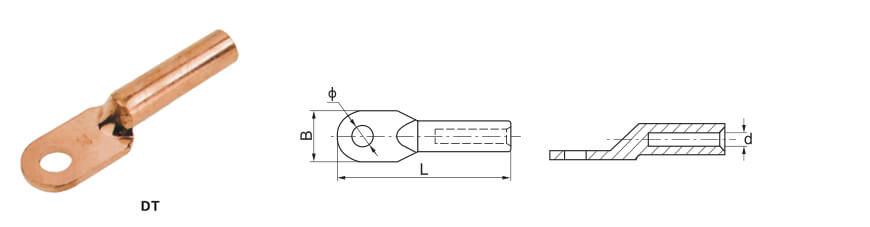

Material:E-Cu
Surface treatment: Bright
Product Property:It is used to connect the copper conductor end
| Type | Dimensions(mm) | |||
| L | d | B | φ | |
| DT 10-6 | 59 | 4.7 | 13.5 | 6.5 |
| DT 16-8 | 67 | 5.7 | 16 | 8.5 |
| DT 25-8 | 70 | 7.2 | 17.5 | 8.5 |
| DT 35-10 | 78 | 8.5 | 20 | 10.5 |
| DT 50-10 | 87 | 9.7 | 23 | 10.5 |
| DT 70-12 | 95 | 11.5 | 26 | 12.5 |
| DT 95-12 | 105 | 13.5 | 28 | 12.5 |
| DT 120-14 | 112 | 15 | 31 | 14.5 |
| DT 150-14 | 116 | 16.5 | 35 | 14.5 |
| DT 185-16 | 125 | 18.5 | 37.5 | 17 |
| DT 240-16 | 134 | 21 | 40 | 17 |
| DT 300-18 | 150 | 23.5 | 44.5 | 18.5 |
| DT 400-20 | 160 | 26.5 | 50 | 21 |
Material:E-Cu
Surface treatment: Bright
Product Property:It is used to connect the copper conductor end
| Type | Dimensions(mm) | |||
| L | d | B | φ | |
| DT 10-6 | 59 | 4.7 | 13.5 | 6.5 |
| DT 16-8 | 67 | 5.7 | 16 | 8.5 |
| DT 25-8 | 70 | 7.2 | 17.5 | 8.5 |
| DT 35-10 | 78 | 8.5 | 20 | 10.5 |
| DT 50-10 | 87 | 9.7 | 23 | 10.5 |
| DT 70-12 | 95 | 11.5 | 26 | 12.5 |
| DT 95-12 | 105 | 13.5 | 28 | 12.5 |
| DT 120-14 | 112 | 15 | 31 | 14.5 |
| DT 150-14 | 116 | 16.5 | 35 | 14.5 |
| DT 185-16 | 125 | 18.5 | 37.5 | 17 |
| DT 240-16 | 134 | 21 | 40 | 17 |
| DT 300-18 | 150 | 23.5 | 44.5 | 18.5 |
| DT 400-20 | 160 | 26.5 | 50 | 21 |
