MJPF CCFBD Fuse Holder Pre-insulated Connector

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Holders for fuse inserts
Designed for protection of connected equipment against overvoltage in mains. They can be used as user's power consumption limiter. The body is made from UV-resistant polymer.
Sealing plug allows for protection of disconnected line from mains side.
– The design enables connection and disconnection of the line with current load up to 60 А. – Contact connection with the line is made by compression, with use of single die.
– Tests for tightness are performed under voltage 6 kV applied for 30 minutes under water.
  • MJPF

  • SMICO

  • NFC33-021

  • 30000/month

Availability:

Product information:

Material:Brass(silver plating)Aluninium

Product property:MJPF is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .

Pre-insulated Fuse holder MJPF used to prevent the circuit break on LV ABC lines, up to 1 KV. Connection and disconnection happened under current load up to 63A.

Pre-insulated Fuse holder MJPF is made of aluminum, which filled with lubricate. Insulation body of connector is made of weather and UV resistant plastic, waterproffed.

These removable circuit breakers are • installed on service lines as a fuse with 4 to 125A and allow disconnection • under load up to 60A. Attached sealing

The connection to the service line of 16 or 25 mm2 is performed by crimping, see page 10 for crimping details.

  • Suitable for 22x58 AD fuse cartridges from 4-125A

  • Allows connection and disconnection under load up to 60 A cap allows to temporary protect access to the network side.

  • Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath

  • Two part body with integrated seals easily interlock during closing

  • Insulation material made of weather and UV resistant polymer

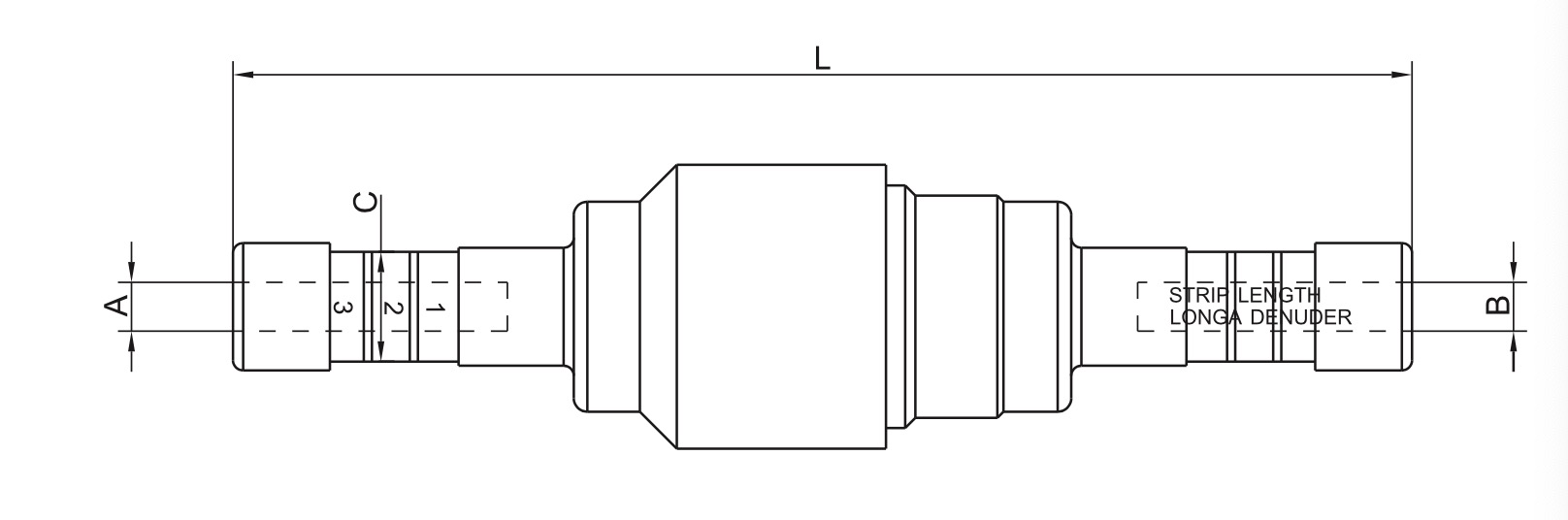

Model

Cable Size (mm2)

Plastic Sleeve Diameter (mm)

Length (mm)

A

B

C

L

MJPF 16/16

16

16

16.2

174.0

MJPF 16/25

16

25

16.2

174.0

MJPF 25/25

25

25

16.2

174.0
