Application:

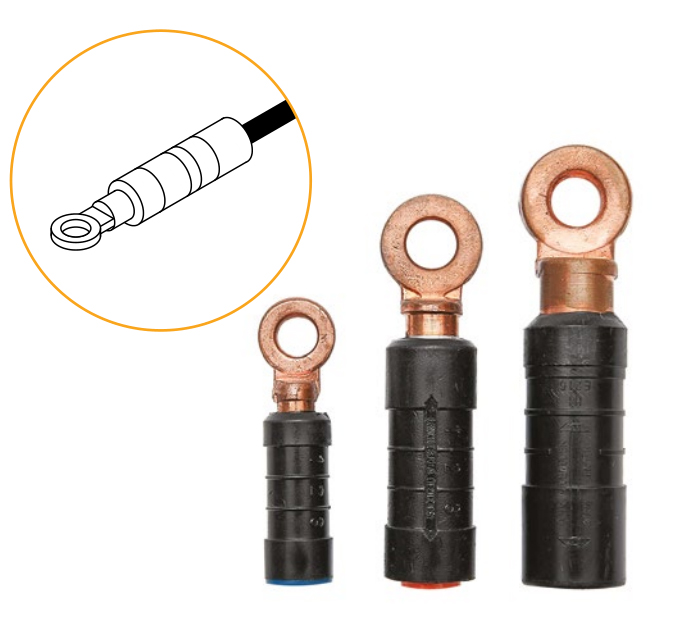

CPTAU preinsulated lug is designed to connect low voltage overhead insulated conductors to copper equipment terminals.
Description:
An aluminium (phase) or aluminium alloy (neutral) sleeve with a stop in the middle.
A black thermoplastic sealed with a flexible elastomer ring.
A neutral contact grease in the tube which improve the contact area and protect the aluminium against oxydation.
The crimping is realized on the plastic part according to the marks on the body of the sleeve.
Features:
CPTAU sleeves withstand the tests described in the French standard NFC 33021 and in ESI 43-14.
They are water resistant and pass the dieletric test of 6 kV in water.
They withstand : 50% of the mechanical phase breaking load.
100 % of the mechanical neutral messenger breaking load.
80% of the conductor load in the self supporting version (CPTAU type Alus).
A color code permits to check easily the cable size
-16mm² ➱blue
-25 mm² ➱orange
-35mm² ➱red
-50mm² ➱yellow
-54.6mm² ➱black
-70mm² ➱white
-95mm² ➱grey
-120mm² ➱pink
-150 mm ➱violet
| Modle | Dimensiongs（mm） | Length (mm) | ||
| C | B | φ | L | |
| CPTAU 16-10 | 16 | 20 | 10.5 | 73 |
| CPTAU 25-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 35-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 50-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 54.6-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 70-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 95-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 120-12 | 23 | 30 | 13 | 125 |
| CPTAU 150-12 | 23 | 30 | 13 | 125 |
| CPTAU 180-12 | 32 | 35 | 13 | 145 |
| CPTAU 240-12 | 32 | 35 | 13 | 145 |
