This preinsulated sleeve is designed for the connection of copper or aluminium stranded core overhead insulated conductors with traction or with no mechanical load. It is used for the installation, repair or modificationoflowvoltageservicelines. Thejunctioncarbeestablishedbetween two conductors of equal or unequal sections. All combinations of sections are possible. The section of the cables ranges goes from 6 up to 35mm² .
- The sleeve can be used in mechanical traction.
- The sleeve has got an excellent dielectric strength, greater than 6kV.
- The materials are protected against UV.
A color code permits to check easily the cable size
-16mm² ➱blue
-25 mm² ➱orange
-35mm² ➱red
-50mm² ➱yellow
-54.6mm² ➱black
-70mm² ➱white
-95mm² ➱grey
-120mm² ➱pink
-150 mm ➱violet

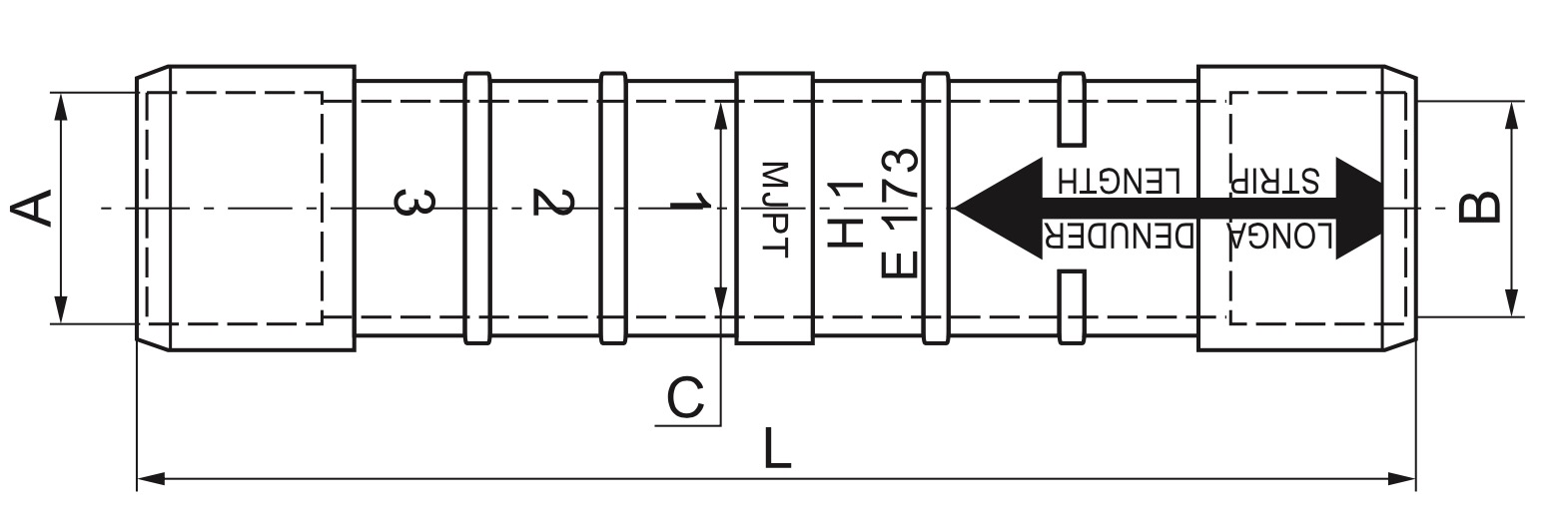

Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
A | B | C | L | |
MJPT 16/16 | 16 | 16 | 20 | 98.5 |
MJPT 25/25 | 25 | 25 | 20 | 98.5 |
MJPT 35/35 | 35 | 35 | 20 | 98.5 |
MJPT 50/50 | 50 | 50 | 20 | 98.5 |
MJPT 70/70 | 70 | 70 | 20 | 98.5 |
MJPT 95/95 | 95 | 95 | 20 | 98.5 |

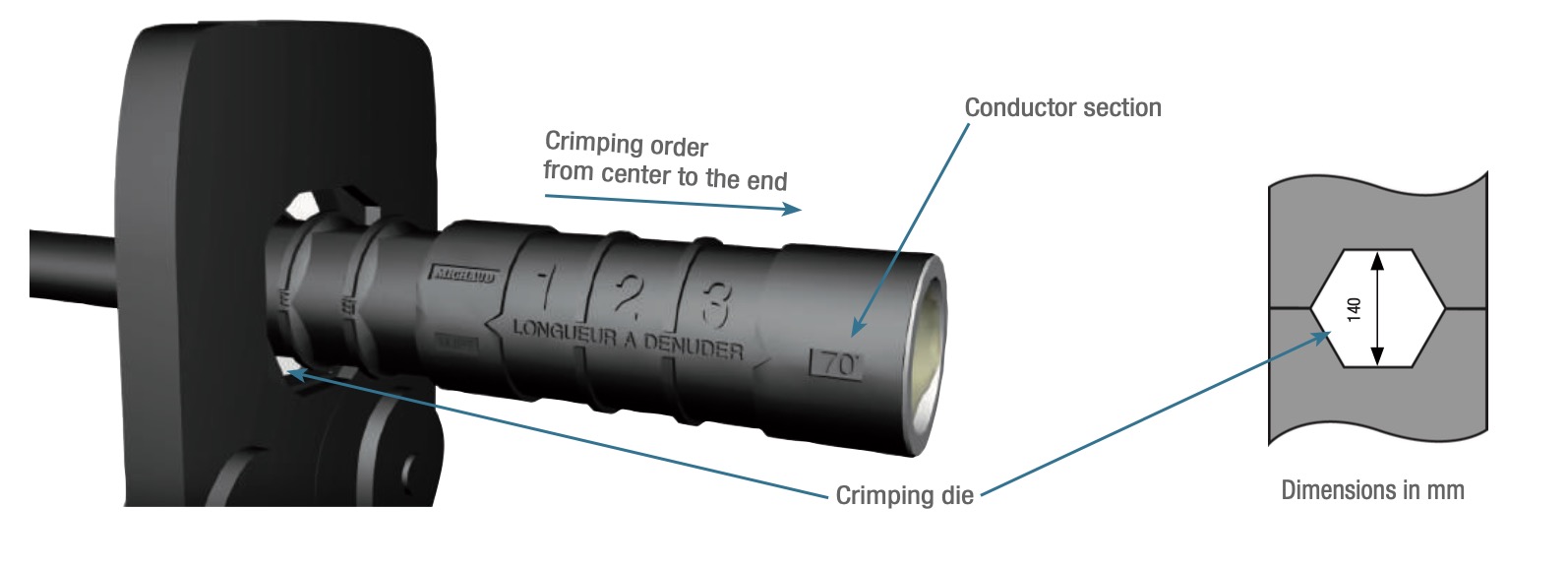

Crimping:
- Both conductors do not need to be inserted before crimping. You can insert one, crimp it, insert the second one and crimp it.
