Product information:
Material：Brass(silver plating)Aluninium
Product property：DPA is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .

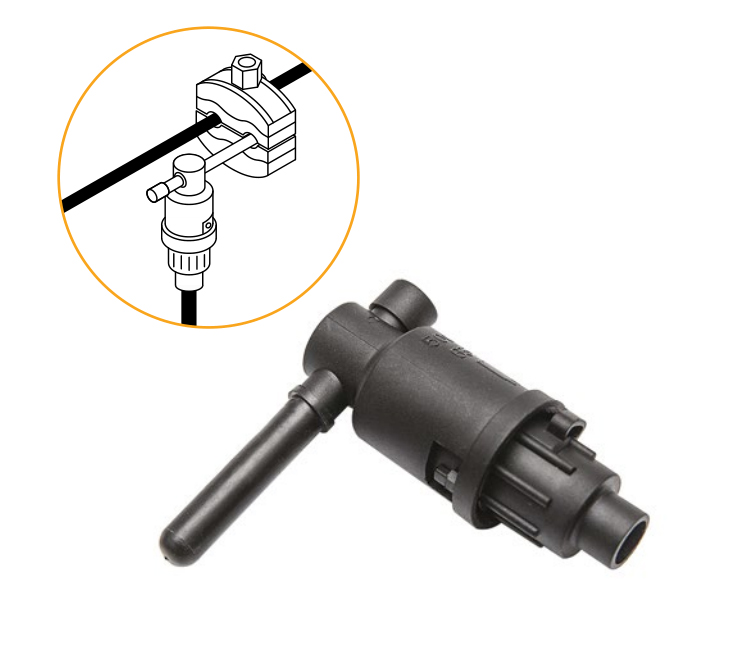

Pre-insulated Fuse holder DPA used to prevent the circuit break on LV ABC lines, up to 1 KV. Connection and disconnection happened under current load up to 63A.
Pre-insulated Fuse holder DPA is made of aluminum, which filled with lubricate. Insulation body of connector is made of weather and UV resistant plastic, waterproffed.
These removable circuit breakers are • installed on service lines as a fuse with 4 to 125A and allow disconnection • under load up to 60A. Attached sealing
The connection to the service line of 16 or 25 mm2 is performed by crimping, see page 10 for crimping details.
Suitable for 22x58 AD fuse cartridges from 4-125A
Allows connection and disconnection under load up to 60 A cap allows to temporary protect access to the network side.
Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
Two part body with integrated seals easily interlock during closing
Insulation material made of weather and UV resistant polymer
| Model | Conductor Range (mm²) | |
| Type | mm² | |
| SDPA | Latcral isolation | - |
| SDPAD | Lateral skinned wire isolation | - |
| SDPAV | Vertical isolation | - |
| SDCC | Single | 6/6 |
| SDCC-R | Single | 25/25 |
| Double | 2X16+1X16 | |
