6 Way Flexline Fiber Optic Dual Feeder Clamp For 4.0-7.0mm Cable

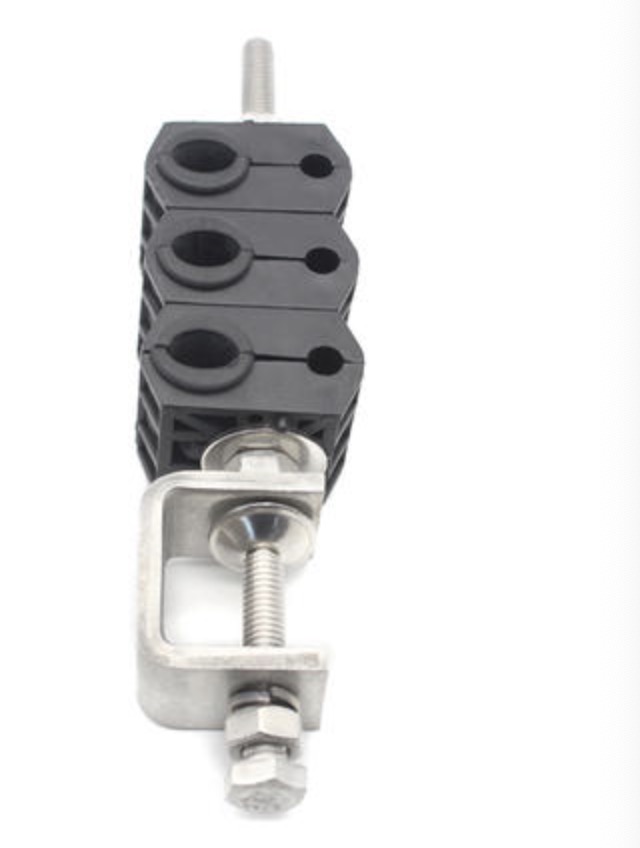

This cable clamp is a sort of module assembly for fixing cables. It' s made of resist ultraviolet and enduring high temperature material. It fits for fixing the circular fiber cable of φ7mm orφ7.5mm and 3.3 square, 4 square, 6 square, 8.3 square cable. It can set three fiber cables and three cables in most. The C-shape bracket is light and terse and It' s easy to fix reliably.

Besides, it can offer a combined solution for power cables (DC) and fiber optic cables (FO). This clamp is very effective and flexible when fixing different size of DC power cables.

This Fiber Optic Cable Clamp is widely used for :

• Telecom cable

• Fiber cable

• Coaxial cable

• Feeder cable

• Hybrid cable

• Corrugated cable

• Smooth cable

• Braid cable




• 1. Disentwine the special bolt of the C-bracket till the ringent distance is bigger than the thick of one

• side of angle iron. And then tighten the special bolt M8; (Reference torque: 15Nm)

• 2. Please retire the nut onto the threaded rod ,and unclench the plastic clip;

• 3. Disjoin the plastic clamp,plunge the Fiber cable ofφ7mm orφ7.5mm into the small hole of plastic

• clamp, plunge the 3.3 square or 4 square cable into the hole of the black rubber pipe in plastic clamp.

• Remove the rubber pipe from the plastic clamp for the 6 square or 8.3 square cable and plunge the

• cable into the hole of plastic clamp (figure right);

• 4. Lock all nuts at last. (Reference torque of lock nut M8 for clamp: 11Nm)
