Heavy Duty connector Screw termination with wire protection,Suitable for power supply applications,Termination with standard screw driver .
Number of contacts: 4/0
Rated current:80A
Rated voltage conductor:830V
Product Certification:UL CUL CE ROHS DMT IEC-61984
Order No.:09380062611
Product Certification: UL CUL CE ROHS DMT IEC-61984
Packaging Details:Standard Export Cartons
Delivery Time: Within 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
  • SO-HK-004/0-M

  • SMICO

  • 100000 pcs per month

  • PC

Availability:

The application of Heavy Duty Connector is not limited to manufacturing industry, but is designed to withstand the most severe industrial environment, such as high voltage current, high mechanical strength, high frequency vibration and contact with corrosive substances. Therefore, it is used to build a strong Ethernet connection in harsh environment, which is stronger, stronger and more resistant than previous connectors.


SMICO heavy duty battery connectors provide a large number of industrial-grade plug-ins, shells and more than 6,000 kinds of supporting products.

This includes: AC and DC connectors for heavy industrial applications;


Multi-pole connectors for the connection of electronic equipment, robots, electrical control panels, power supplies, control or signal circuits;

Covers for standard, harsh and EMC environments;

Plastic and metal cable glands.

All products are designed with top materials and meet international standards and UL/CSA requirements.


The main parts of Heavy Duty Battery Connector are composed of die-cast aluminum alloy and polyester powder surface or self-extinguishing thermoplastic material. Connection stability and accidental opening protection are achieved through two locking systems. Protective sealing ring is used inside, which is dustproof, waterproof and anti-corrosive solvent.

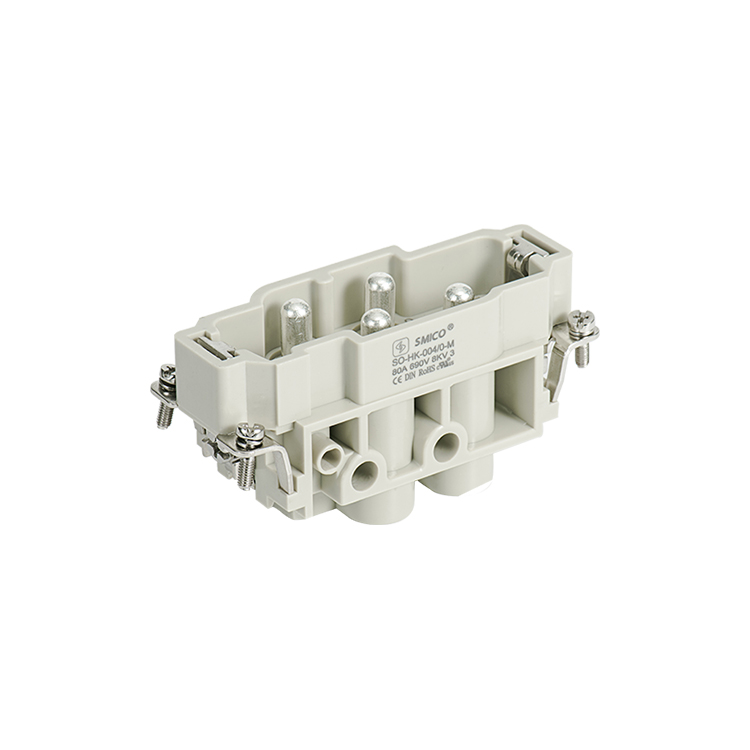

4Poles+PE,80A,Screw male insert


Inserts

Suitable Shell:16BHood/Housing

Number of contacts

4

Electrical data acc. to EN 61 984


---Rated current

80A

---Rated voltage conductor

830V

---Rated impulse voltage

8kV

---Pollution degree

3

---Pollution degree 2 also

16A 400/690V 6kV 2

Rated voltage acc. to UL/CSA

600V/300V

Insulation resistance

≥1010Ω

Material

polycarbonate

Limiting temperatures

-40℃...+125℃

Flammability acc. to UL 94

V0

Mechanical working life(mating cycles)

≥500

Contacts

Material

copper alloy

Surface

hard-gold plated

hard-silver plated

Contact resistance

≤3mΩ

terminal


---Wrie gauge

1.5-16/1.0-2.5mm2

---AWG

16-6/18-14

---Tightening/Test torque


---Stripping length



06


The function of the heavy-duty connector

1. Electrical insulation between connectors to avoid interference between signals.

2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.

3. Provide mechanical protection and support for the insert body.

4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.

The advantages of heavy-duty connectors

1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.

2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.

3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.

4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.

heavy-duty connector wiring method

1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.

2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.

3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.
