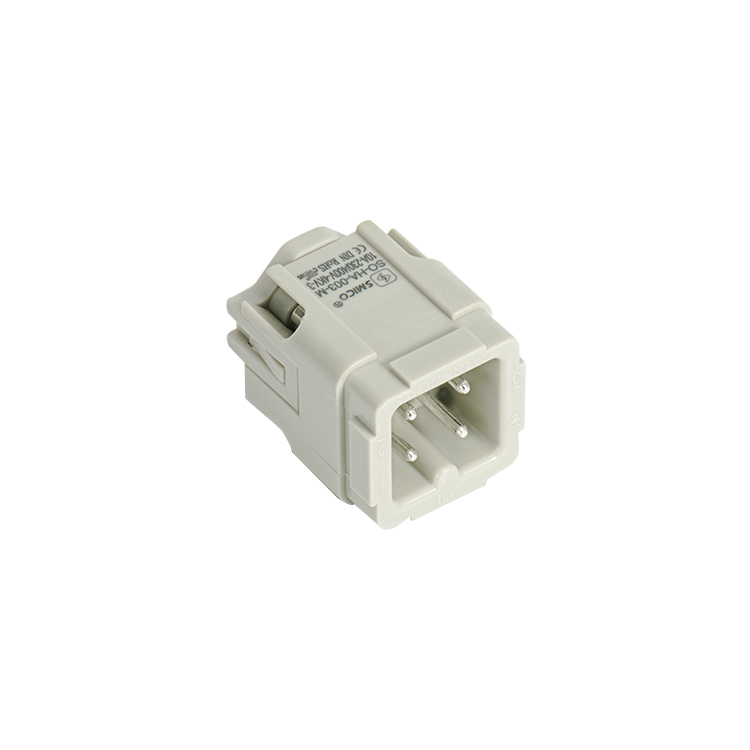

HA-003-M 3pin Heavy Duty Connectors Insert 09200032611 HA-003-M 3pin Heavy Duty Connectors Insert 09200032611

loading

HA-003-M 3pin Heavy Duty Connectors Insert 09200032611

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Heavy Duty connector Screw termination with wire protection,Suitable for power supply applications,Termination with standard screw driver .
Number of contacts: 3
Rated current:10A
Rated voltage conductor:230/400V
Product Certification:UL CUL CE ROHS DMT IEC-61984
Order No.:09200032611
Product Certification: UL CUL CE ROHS DMT IEC-61984
Packaging Details:Standard Export Cartons
Delivery Time: Within 7 Days
Payment Terms: L/C, T/T, Western Union, Paypal
  • SO-HA-003-M

  • SMICO

  • 100000 pcs per month

  • PC

Availability:

Heavy-duty connectors, also known as HDC heavy-duty connectors, aviation plugs, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robots, rail transit, hot runners, electricity, automation, etc. that require electrical and signal connections In the device.

3 Poles+PE,10A,screw male insert


Inserts

Suitable Shell:3AHood/Housing

Number of contacts

3

Electrical data acc. to EN 61 984


---Rated current

10A

---Rated voltage conductor

230/400V

---Rated impulse voltage

4kV

---Pollution degree

3

---Pollution degree 2 also

16A 250V 4kV 3

Rated voltage acc. to UL/CSA

600V

Insulation resistance

≥1010Ω

Material

polycarbonate

Limiting temperatures

-40℃...+125℃

Flammability acc. to UL 94

V0

Mechanical working life(mating cycles)

≥500

Contacts

Material

copper alloy

Surface

hard-gold plated

hard-silver plated

Contact resistance

≤1mΩ

Screw terminal


---Wrie gauge

1.0-2.5mm2

---AWG

18-14

---Tightening/Test torque

0.25N·m

---Stripping length

7.0mm


06


The function of the heavy-duty connector

1. Electrical insulation between connectors to avoid interference between signals.

2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.

3. Provide mechanical protection and support for the insert body.

4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.

The advantages of heavy-duty connectors

1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.

2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.

3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.

4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.

heavy-duty connector wiring method

1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.

2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.

3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.
