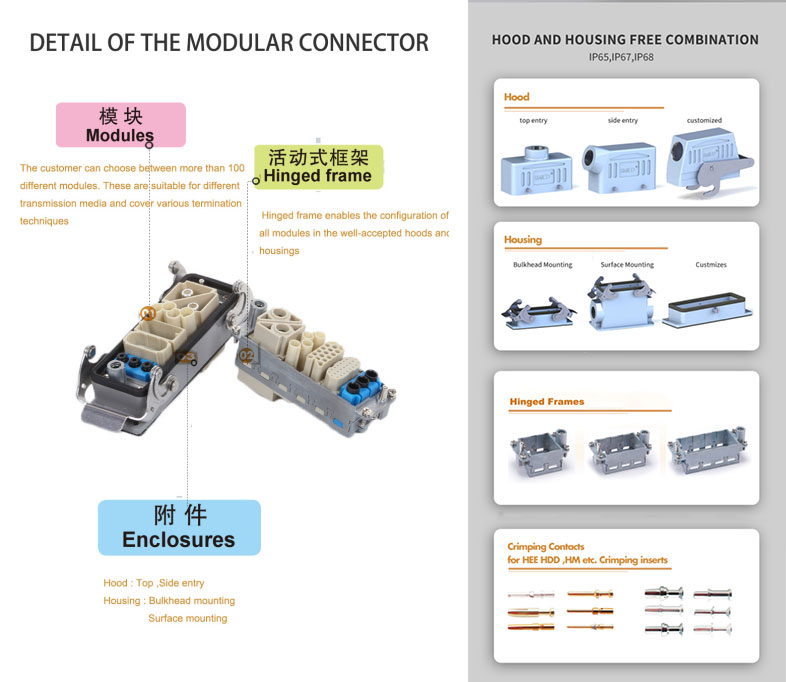

The Modular series heavy duty connector is designed for combining different transmission media in one connector. The multifaceted system of inserts, contacts, frames, hoods and housings as well as accessories fulfils individual customer requirements. The customer can choose between more than 100 different modules. These are suitable for different transmission media and cover various termination techniques. The patented hinged frame enables the configuration of all modules in the well-accepted hoods and housings.
42 pin 10A female crimping terminal :
Inserts | |
Number of contacts | 42 |
Electrical data acc. to EN 61 984 | |
---Rated current | 10A |
---Rated voltage conductor | 150V |
---Rated impulse voltage | 2.5kV |
---Pollution degree | 3 |
Rated voltage acc. to UL/CSA | 600V |
Insulation resistance | ≥10^10Ω |
Material | polycarbonate |
Limiting temperatures | -40℃...+125℃ |
Flammability acc. to UL 94 | V0 |
Mechanical working life(mating cycles) | ≥500 |
Contacts | |
Material | copper alloy |
Surface | hard-gold plated |
hard-silver plated | |
Contact resistance | ≤1mΩ |
Crimp terminal | |
---mm2 | 0.14-2.5mm2 |
---AWG | 26-14 |
The advance for modular heavy duty connector :
1. Combination of different connectors to one unit
2.Shorter installation times
3.Important space saving
4.Save money for components as well as for the whole industrial site
5.Future safe design due to easy extensions
SMICO Heavy duty connectors Applications :
Machinery
Automation
Robotics
Rail
Energy Distribution
Renewable Energy
Construction Machinery
Professional Light and Sound
