SMICO Industrial Connectors Family Modular Series:
SMICO Industrial Connectors are suited for the harshest requirements in industrial environments. They are used in all applications requiring a safe and removable electrical connection. The field of application for SMICO connectors is in protected electrical areas; for example in control cabinets to outdoor applications.
The SMICO Industrial product line incorporates small connectors capable of a few amps up to large multi-way high power connections. The possible combination of connectors is large enabling sensitive signals of a few milli-volts, as used in the field of Gigabit transmissions, up to 600 Amps or 5000 Volts for high power applications.
The SMICO Modular connector range is flexible enough to have a single piece design or multi-modules locked together in a single frame. These modules are standard and can accommodate, signal, and power circuits along with fiber optic or compressed air lines in a single connector.
Features:
Space Savings - Integration of multiple connectors into a single unit allow for significant reduction in space requirements
Low-maintenance - Using a pre-assembled, pre-tested connector assembly can reduce hard wiring and installation time
Flexibility - With the SMICO Modular series, users can assemble their ‘own’ connectors according to their own individual requirements. Essentially creating a "custom" connector using standard stocked modules
Future Proof - Placeholder modules give you the flexibility to future-proof your modular connector design

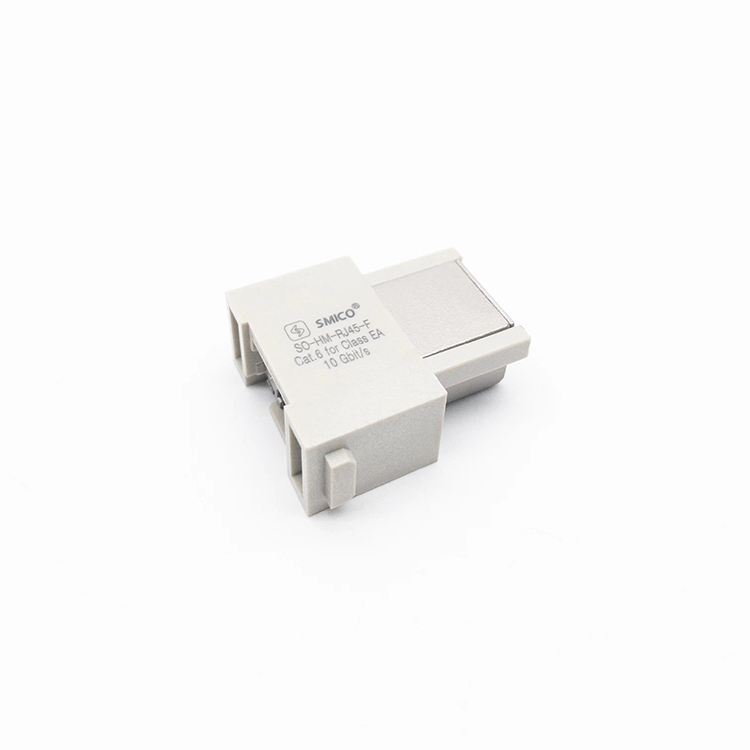

SMICO RJ45 connector features a future-proof design for 10 Gigabit Ethernet. It offers reliable and quickly connection and uses proven insulation displacement terminal technology. The insulation displacement terminals are designed for rigid and flexible conductors with an extremely broad range of wire cross-sections.
Cables with diameters from 4.5 to 9 mm are securely fixed in place inside the connector by a newly developed cable gland, allowing users to connect all customary Ethernet cable types with this one RJ45 connector type. Its compact design makes the rugged and industry-standard IP 20 model also suitable for multi-port RJ45 jacks. In addition to the IP 20 models, all known IP 65 / IP 67 PushPull types up to 3 A are now available with this new insert.
A unique version, the RJ Multi-feature, with integrated blades that trims wires to the perfect links makes in-field installation easier than ever.
Features:
Available in straight and angled versions
Double connector friendly for wire sections of AWG 27/7 to AWG 22/1 and cable diameter from 4.5 to 9mm for all usual Ethernet cable types in industry and office IT
Safe and rapid tool free cabling with captive wire manager
Cat.6, transfer class EA, suitable for 1 and 10 Gigabit Ethernet
Small and multi-port capable
Suitable for industry, robust yet light
The same installation technology for all connector types from IP20 to PushPull
Multi-feature IDC version available
8 Poles,1A, female insert
Inserts | Suitable Shell: |
Number of contacts | 8 |
Electrical data acc. to EN 61 984 | |
---Rated current | 1A |
---Rated voltage conductor | 50V |
---Rated impulse voltage | 0.8kV |
---Pollution degree | 3 |
---Pollution degree 2 also | |
Rated voltage acc. to UL/CSA | |
Insulation resistance | ≥1010Ω |
Material | polycarbonate |
Limiting temperatures | -40℃...+125℃ |
Flammability acc. to UL 94 | V0 |
Mechanical working life(mating cycles) | ≥500 |
Contacts | |
Material | copper alloy |
Surface | hard-gold plated |
hard-silver plated | |
Contact resistance | |
terminal | |
---Wrie gauge | |
---AWG | |
---Tightening/Test torque | |
---Stripping length | |
The function of the heavy-duty connector
1. Electrical insulation between connectors to avoid interference between signals.
2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.
3. Provide mechanical protection and support for the insert body.
4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.
The advantages of heavy-duty connectors
1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.
heavy-duty connector wiring method
1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.
2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.
3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.
