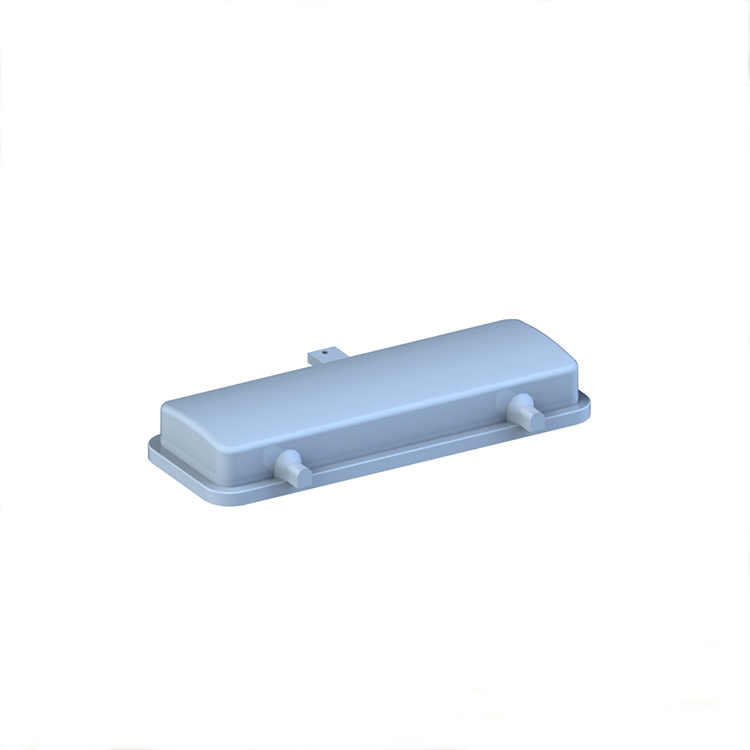

Heavy-duty connectors, also known as HDC heavy-duty connectors, aviation plugs, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robots, rail transit, hot runners, electricity, automation, etc. that require electrical and signal connections In the device.
Two levers at the bottom part of the housing
o Secure locking ensured by four locking points
o Minimal space requirements and high locking force
o Ideal for laterally arranged connectors
Two levers on the hood
o Secure locking ensured by four locking points
o Minimal space requirements and high locking forces
o Ideal for laterally arranged connectors and surface-mounted housings with caps
One lever at the bottom part of the housing
o Two locking points along the longitudinal axis
o Easy to access even with cable entering laterally
o Cap on the upper part of the housing can be locked
Screw / bayonet locking system
o Actuated using a hexagon wrench or screwdriver
o Vibration-proof connections with outstanding sealing effect
o Easy to access even with cable entering laterally
o Prevents accidental or unauthorized opening
Hood Link locking system
o A resistant elastomer element connects and seals (IP65) hood and housing
o Ideal for quick and easy (flying) cable-to-cable connections
o Resistant to oils and gases; absorbing external mechanical forces
| Material | aluminium die-cast |
| Colour | Grey |
| Locking element | |
| ---Lever type | metal elastic pressing |
| ---Material | Stainless steel |
| Hoods/Housing sealing | NBR |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc.to UL 94 | V0 |
| Degree of protection acc.to EN 60529 for coupled connector | IP65 |
The function of the heavy-duty connector
1. Electrical insulation between connectors to avoid interference between signals.
2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.
3. Provide mechanical protection and support for the insert body.
4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.
The advantages of heavy-duty connectors
1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.
heavy-duty connector wiring method
1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.
2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.
3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.
