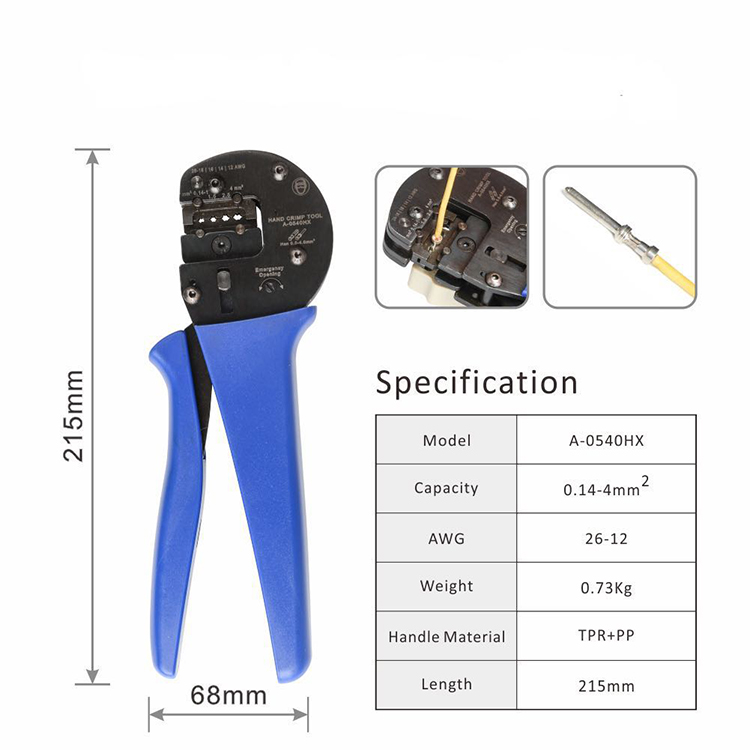

SMICO Ratchet Crimping Tool works for AWG 26-12 Han C,Han D,Han-E Contact or Connectors with Locator Set (0.14mm²-4.0mm²) SMICO A0540HX ratchet crimping tool is designed to crimp solid turned
Heavy duty connector crimping tool Features:
Precise crimping die processed with WIRE EDM Cutting to ensure a phenomenal tolerance
Ratchet mechanism increases the crimp reliability and enables the operator to repeatedly produce consistent, high-quality crimps
Ratchet emergency releasement can be actuated when miss-crimp
Ergonomically designed, non-slip handles for comfortable use
Applicable to Han C, Han D, Han E contacts
Wire Cross Section Minimum: 0.14mm²
Wire Cross Section Maximum: 4mm²
Han D: 0.14mm² to 1.5mm²
Han E: 0.5mm² to 4mm²
Han C: 1.5mm² to 4mm²
The function of the heavy-duty connector
1. Electrical insulation between connectors to avoid interference between signals.
2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.
3. Provide mechanical protection and support for the insert body.
4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.
The advantages of heavy-duty connectors
1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.
heavy-duty connector wiring method
1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.
2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.
3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.
