Nylon PA66 Plastic PT Series Push In Connection Terminal Nylon PA66 Plastic PT Series Push In Connection Terminal


Nylon PA66 Plastic PT Series Push In Connection Terminal

Share to:
The PT push-in connection terminal blocks from the complete system have been developed for direct conductor
connection and offer a wide range of application options.

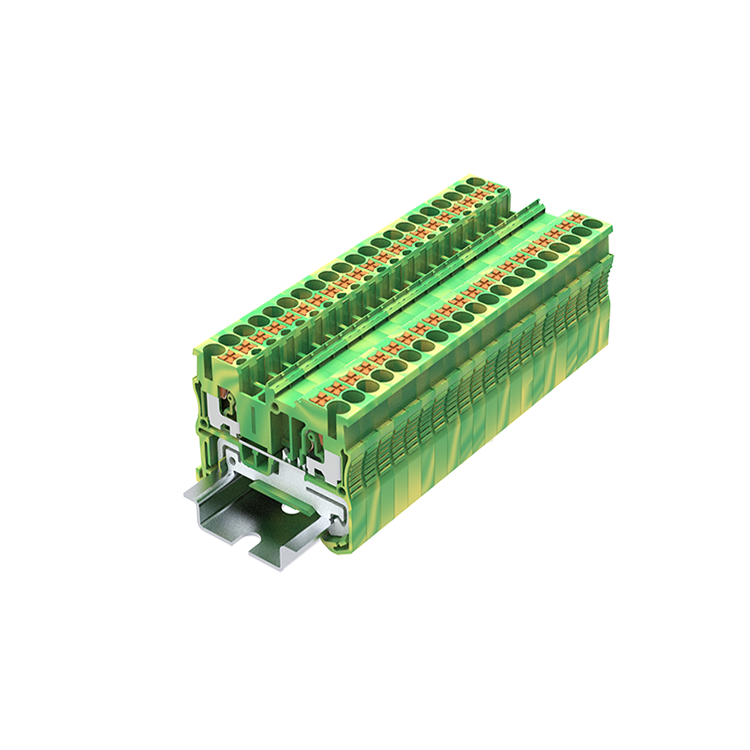

  • PT2.5-2-PE



SMICO Push In Din Rail Mounted Terminal Blocks


The Push-in connection terminal blocks reduce the wiring time , and can support simply wiring in places where is only a little space available. You don't need any tool, just insert the cable is ok.

◆ Made from anti Inflaming Nylon PA 66, copper metal.

◆ Connecting, build bridges and labeling large or small conductor cross sections easily for feed through terminal blocks.

◆ Wiring can be handled in a limited space thanks to the compact design and front entry connection.

◆ With universal foot which can be installed on 35mm Standard Din Rail.

◆ Build electric potential distribution by using plug-in bridges in the terminal center.

◆ Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.

The PT DIN rail mounted terminal blocks from SMICO contact are fused, type F terminal blocks that give you the added protection compared to a conventional DIN rail terminal block. PT series blocks are small in size, so it allows for wiring in confined spaces while also allowing a more compact setup on a single rail. These terminal blocks have a double function shaft while also having an additional testing port and thanks to the push-in connection technology, you'll have an effortless install. Simply plug in your cable and ensure a tight connection has been made by slightly tugging the cable.

The housing is made from a black polyamide material and is backed by a flammability rating of V0. Not to mention, these PT terminal blocks also have an LED to allow you to determine your voltage rating.

Push-In Connection Terminal Blocks

Basic Information


Pitch 5.2mm
Number of levels 1
Number of connections 2P
Connection method Push in spring terminal
Protection Level IP20
Work temperature -40~+105℃

IEC Data

Rated Current /
Rated Voltage /
Overvoltage category
Pollution degree 3
Rated impulse voltage 8KV
Conductor cross section solid 0.2-4mm²
Conductor cross section flexible 0.2-1.5mm²
Conductor cross section flexible,with furrule 0.2-2.5mm²
Stripping length 8-10mm

UL Data

Use group B C D
Rated Current / / -
Rated Voltage / / -
Rated cross section 26-14AWG - -

Material Date

Insulation material PA66
Insulation material group Ⅲa
Flame retardant grade, UL94 compliance V0
Contact material Copper alloy
Surface characteristics Sn,Plated


Set 1: Prepare the wires to be connected

Set 2: Directly insert the cable, no tools required

Set 3: Screwdriver into the orange button

Set 4: Unplug the wire, the wire withdrawal is complete

Rail Push Terminals

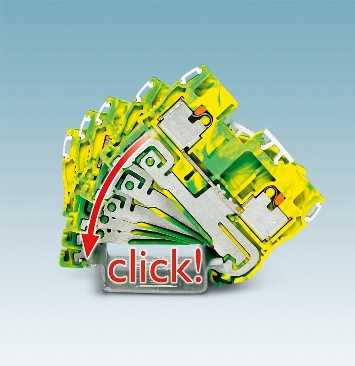

Pt Electrical Din Rail Push In Connector Feed Through Spring Terminal Blocks Push-in Terminal Block Screwless InterlockingSpring Push Terminals


Push-in connection technology

The PT series is characterized by the easy,direct conductor connection and makes consistent use of the benefits of the complete system.


Easy insertion

The up to 50 percent reduction in inser-tion force offered by push-in technology supports simple and direct insertion of solid and stranded conductors featuring ferrules with a cross section of 0.34mm2 or higher.


Latch function

The integrated latch allows you to release connections with any type of tool – easily and without direct contact with live parts.

With the in-line connection technology, wires with a diameter of 0.25 mm or more can be easily connected directly without tools. With contact springs, the wires can be inserted easily and the connection quality is high.


With direct plug-in connection, the pre-treated rigid wire can be connected without tools, saving time

Easily insert wires, saving 50% of effort

The pull button is color-coded to ensure safe wiring and operation

No need to install tools, you can easily release the wire

Unified  complete system accessories to reduce logistics costs

Push-in terminal blocks are part of the  line system

PT combined terminal block

The in-line connection PT series terminal blocks are suitable for connecting various wires with a nominal wire diameter of 1.5 mm to 185 mm.
Just insert a rigid wire with a wire diameter of 0.25 mm or more or a flexible wire with a cold head into the wiring position, and the wiring is convenient and quick. The contact spring opens automatically, generating sufficient pressing force on the current bar. When installing a thin wire with a wire diameter of 0.14 mm or more, use a standard screwdriver to unscrew the contact spring.
This series of terminal blocks takes full advantage of the complete system. Various connection technologies and standardized system accessories can be freely combined.

PTV combines the advantages of in-line self-locking technology and screw terminal blocks

The PTV terminal block combines the advantages of tool-free in-line self-locking connection and side access of screw terminal blocks. The terminal adopts the tool-free direct insertion self-locking connection technology, the required wire insertion force is small, the connection is strong in vibration resistance, and the wiring time is saved. In addition, it also adopts the side entry design, the wiring position is clear, and there is no bending radius. Thereby, the vertical wiring between the wiring terminal and the line trough is realized, and it is easier to paste and read the cable identification.

Detailed explanation of in-line connection technology

You can directly connect rigid wires or prefabricated wires with ferrules without tools.

The special spring design can easily insert rigid wires with a wire diameter of 0.25 mm? or more and flexible wires with a cold press head to achieve a strong wire pull-out force.

Easily insert wires, saving 50% of effort.

By using the pull-out button, you can use various tools to loosen the wire without directly touching the live parts.

When connecting a flexible wire with a wire diameter of 0.14 mm or more without a ferrule, you only need to easily turn on the pull-out button when inserting it.

The pull button is color-coded to ensure safe wiring and operation.

Front wiring, easily connect various wires.
