China Aidun Electric “Solarson”brand 11KV-15KV H Type Out Door Cut Out Fuse Links, The Fuse Element adopts the accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
Product type:H Type
Voltage Rating: 11KV-15KV
Ampere Rating: 0.5A,1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A,40A,50A,63A,80A,100A,125A,160A,200A
Standard:IEC60282, ANSI/IEEE C37.41, C37.42

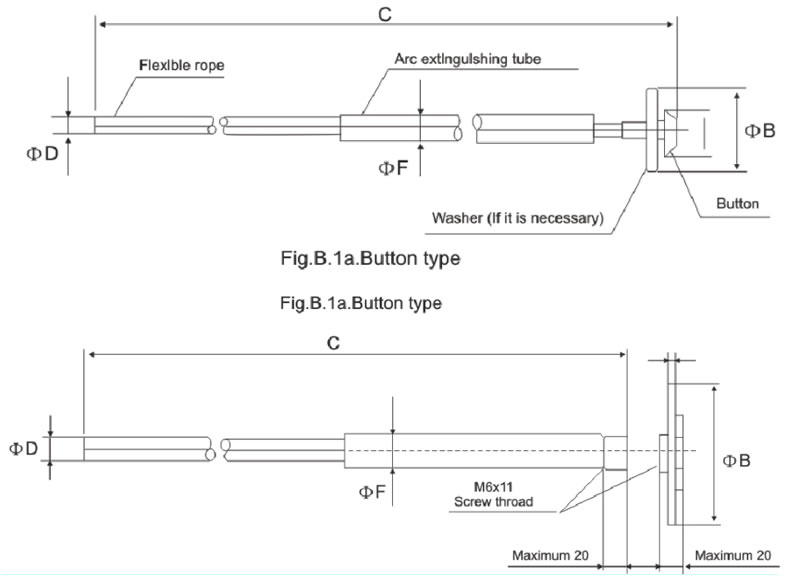

Rated current | Dimensions (mm) | Quantity/carton | ||||
A | B | C | D | F | ||
1 to 40 | 12.5±0.2 | 19.0±0.3 | Note 1 | 2.0 | 6.5 | 500 |
50 to 100 | 12.5±0.2 | 19.0±0.3 | 5.0 | 8.0 | 500 | |
120 to 200 | 19.0±0.3 | not | 7.0 | 12.0 | 250 | |
Note 1: Lengths of the Expulsion Fuse Links shall be 585mm for 11KV and 787mm for 33KV respectively. | ||||||
FUSE LINK, TYPE K, TYPE TYPE H | ||||||
