Solar Connector Inline Fuse Holder with 10A 15A 20A 30A Fuse

Share to:
SMICO PV Inline Fuse Connector is Compatible with 800+ solar module connectors, suitable for solar cable 2.5 mm2,
4mm2 and 6mm2 in solar connection project.quickly and reliable connection of the solar cables to the photovoltaic
system(solar panels, converters).
  • SO-CF4A


  • Fuse Can Replace

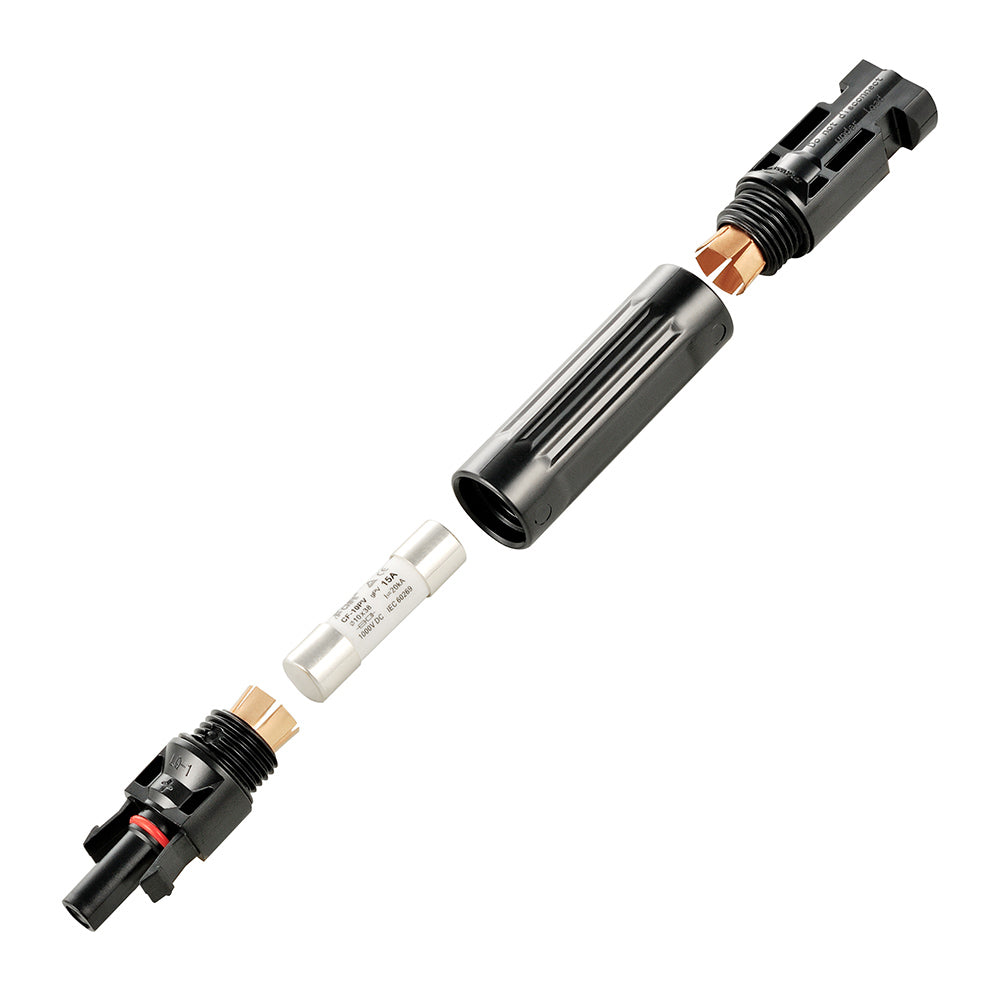

  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.

  • Compatible with PV cables with different insulation diameters.

  • Designed for a wide range of DC applications.

  • Simple plug-and-play.

  • Auto-lock equipment of male and female points render connections easy and reliable.

  • Waterproof fuse holder - IP67 Class Protection.

  • Insulation material PPO.

  • High current-carrying capacity.

  • Prevent large currents from damaging the solar panels.

  • Designed to provide complete single circuit protection to your solar power array.

  • Protection Class II

  • Connector adopts touch and insertion of reed with inner-knob type.

  • Purchase this product for extra protection on your system.


  • Rated Current: 10A/15A/20A/30A

  • Degree of Protection: IP2*/IP67

  • Rated Voltage: 1000 V DC

  • Flame Class: UL94-V0

  • Test Voltage: 6000V (50Hz,1 min)

  • Safety Class: II

  • Overvoltage Category: CATIII

  • Suitable Connector: Solar Connector

  • Contact Resistance of Plug Connector: 1mΩ

  • Insertion Force / Withdrawal Force: ≤50N / ≥50N

  • Contact Material: Copper, Silver Plated

  • Insulation Material: PPO

  • Temperature Range: -40 to +125°C
