Pinza De Retencion Autoajustable Para Neutro Portante Pinza De Retencion Autoajustable Para Neutro Portante

loading

Pinza De Retencion Autoajustable Para Neutro Portante

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • PAL1000

  • SMICO

  • 35-50mm²

  • NFC 33-042, EN 50483-3

  • 700000/month

  • UV PA66

Availability:

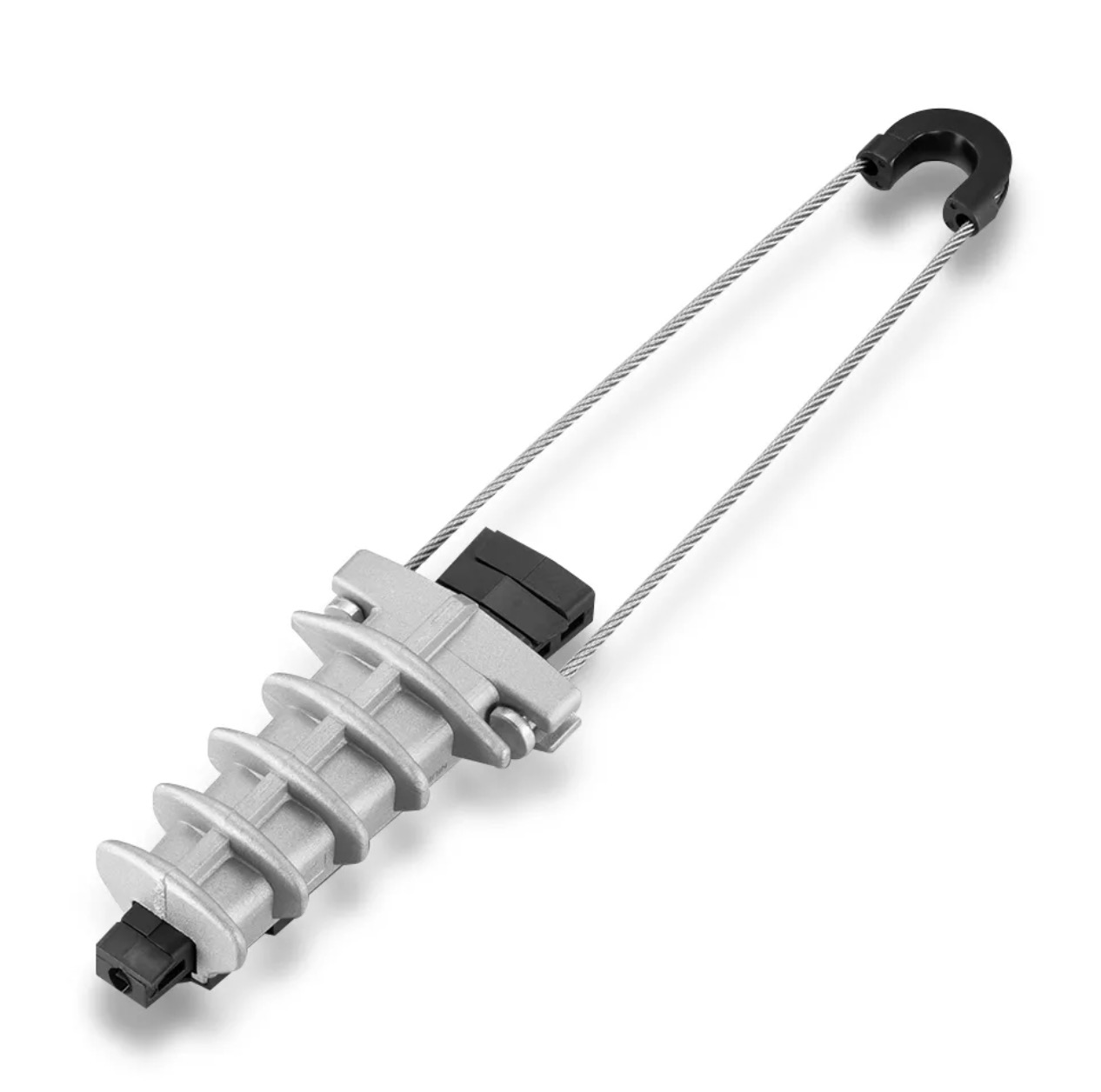

Dead End Clamp PAL1000 is used for tightening LV ABC with insulated conductor and its function is to receive LV ABC on the places where it is technically defined. Its design provides easy, fast and reliable installation in all weather conditions. It is installed using no tools and do not contain parts which can fall off. Dead End Clamp PAL1000 consists of the body casted of aluminum alloy and self-adjusting plastic wedges which tighten the conductor without insulation damage. All parts of Dead End Clamp PAL1000 are resistant to corrosion, environmental effects and UV radiation. Maximum turning angle is 45 degrees for one-sided tightening and 90 degrees for twosided tightening. Minimum breaking strength is 10 kN. The Clamp is delivered with hot-dip galvanized or stainless steel cord.

wechatimg1272

install-dead-end-clamp
