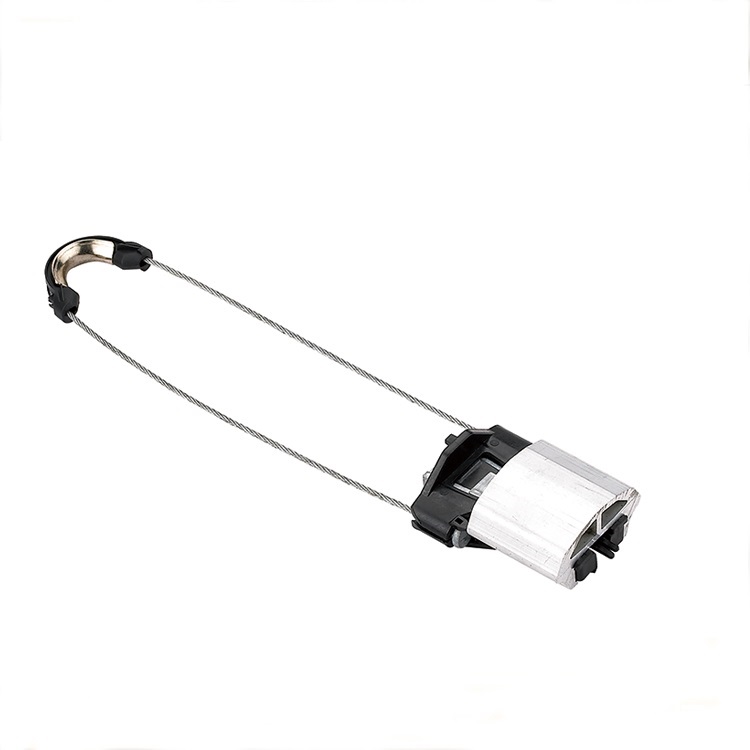

PAM-07 Aluminium Anchor Clamp for Abc Cable

Product property: They are characterized by high mechanical stability ,reduced dimensions for easier handling,high mechanical and climatic resistance .Cble gripping device in insulationg material ensures the double insulation of neutral core and avoids damage to sheath ,secured parts,no tools required .Stainless steel bail with two marbles compressed on the end , the is conception allows an easier locking on the body of the clamp .They are in accordance with NFC 33-041

Model:
PAM-07
Brand:
SMICO
Conductor Range:
16-25mm²
Standard:
NFC 33-042, EN 50483-3
Supply Ability:
700000/month
Main Ingredients:
Aluminium alloy body

Availability:



Inquire Add to Basket

Product Description

Product information:

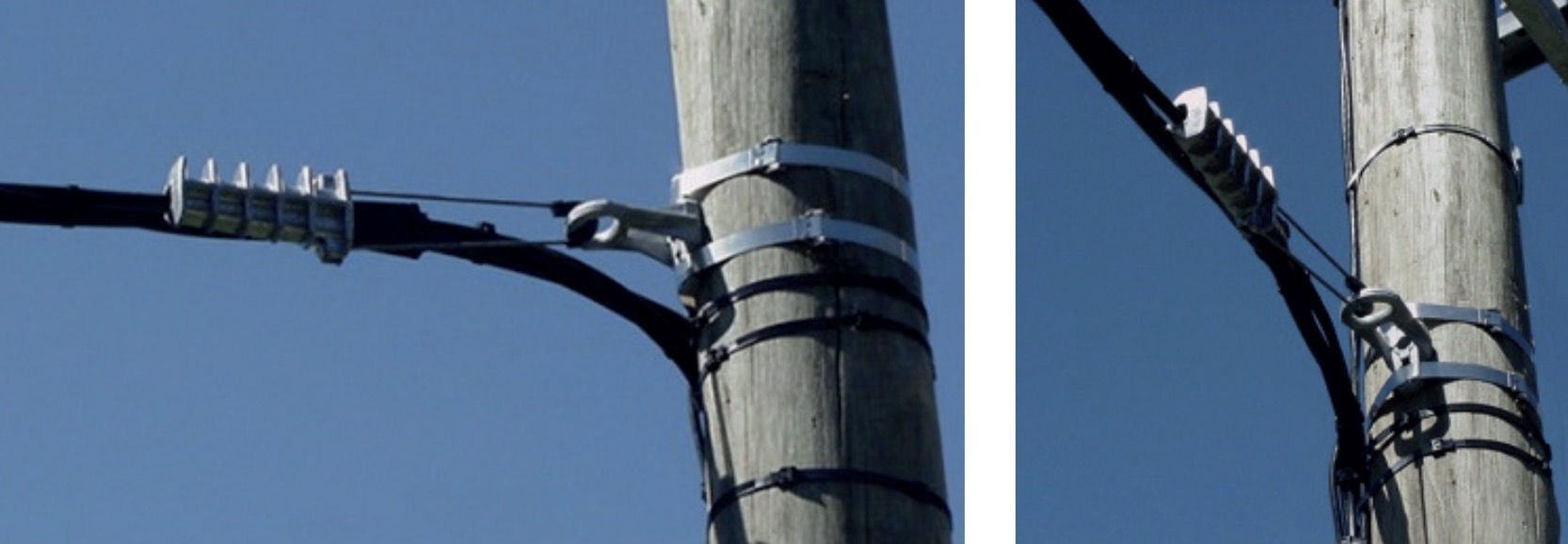

Anchoring clamp PAM-07 is wedge type, designed to anchor insulated messenger, in LV ABC insulated overhead systems, up to 1 KV.

Applied on cable from 16-25 mm2 in main electric connections.

Anchor clamp PAM-07 is made of stainless steel wire bail, UV resistant, FG reinforced polymers, high strength aluminium.

Tension clamp PAM-06 is self-adjusting compared to bolted clamps, this simplify the installation process, and allows installations of closed drive hooks, pole brackets and other low voltage cable brackets and other pole fittings and hardware.
