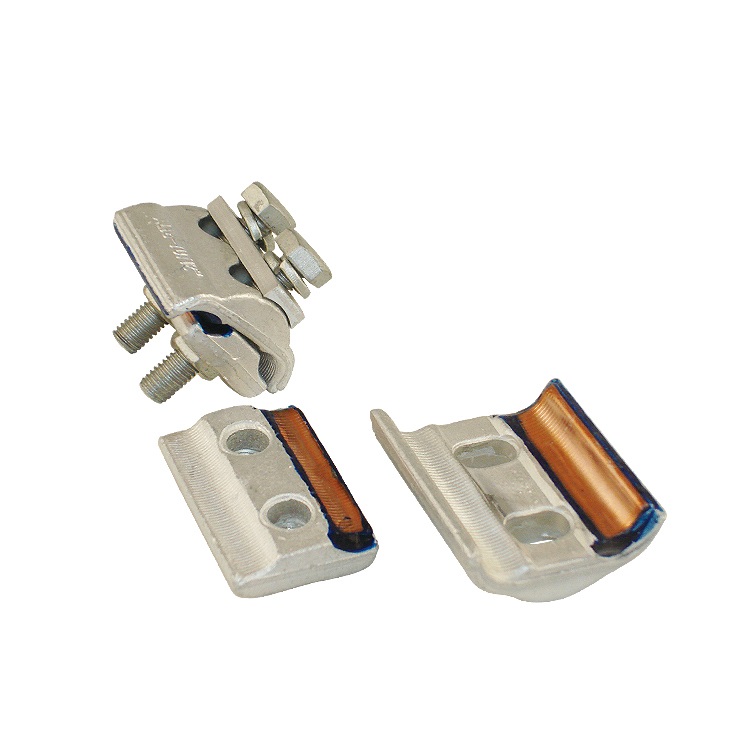

Parallel groove clamp is designed to connect two parallel bare aluminum and copper conductors in low voltage cable lines, service line system, street lightning and buildings.
Parallel groove clamp are made of high strength corrosion resistant aluminum alloy, copper ,galvanized steel bots, nuts and spring washers.
Exceed requirements according to VDE 0210 and VDE 0212
Pressure pad ensuring uniform pressure along the clamp
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
Bolts and nuts made of hot dip galvanized steel 8.8
Forged Bimetallic
For connection of Aluminium (according to DIN 48201 & ACSR conductors according to DIN48204) to Copper conductors (according to DIN 48201). Type tested to AS1154.1.
Body:
High strength, corrosion resistant, aluminium alloy
1, 2 & 3 Bolt: Hot-forged bimetallic sheet
U-bolt: Friction pressure welded strip
Bolts:
1, 2 & 3 Bolt: DIN 933 grade 8.8, hot-dipped galvanised
U-bolt: A2 stainless steel
Washers:
1, 2 & 3 Bolt: DIN 6796, conical spring washer, corrosion resistant
U-bolt: ASTM A666, 301 stainless steel Belleville
Nuts:
1, 2 & 3 Bolt: DIN 934 Steel 8.8 hot-dipped galvanised
U-bolt: DIN 439 stainless steel A2
Model | Conductor Cross-section (mm²) | Bolts |
CAPG-A1 | Cu 6-50 AI 16-70 | 1XM8X40 |
CAPG-A2 | Cu 10-95 AI 25-150 | 1XM8X45 |
CAPG-B1 | Cu 6-50 AI 16-70 | 2XM8X45 |
CAPG-B2 | Cu 10-95 AI 25-150 | 2XM8X50 |
CAPG-B3 | Cu 25-185 AI 35-200 | 2XM10X60 |
CAPG-C1 | Cu 6-50 AI 16-70 | 3XM8X45 |
CAPG-C2 | Cu 10-95 AI 25-150 | 3XM8X50 |
CAPG-C3 | Cu 25-185 AI 35-240 | 3XM10X60 |
CAPG-C4 | Cu 35-240 AI 35-300 | 3XM10X70 |
Parallel groove clamp is designed to connect two parallel bare aluminum and copper conductors in low voltage cable lines, service line system, street lightning and buildings.
Parallel groove clamp are made of high strength corrosion resistant aluminum alloy, copper ,galvanized steel bots, nuts and spring washers.
Exceed requirements according to VDE 0210 and VDE 0212
Pressure pad ensuring uniform pressure along the clamp
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
Bolts and nuts made of hot dip galvanized steel 8.8
Forged Bimetallic
For connection of Aluminium (according to DIN 48201 & ACSR conductors according to DIN48204) to Copper conductors (according to DIN 48201). Type tested to AS1154.1.
Body:
High strength, corrosion resistant, aluminium alloy
1, 2 & 3 Bolt: Hot-forged bimetallic sheet
U-bolt: Friction pressure welded strip
Bolts:
1, 2 & 3 Bolt: DIN 933 grade 8.8, hot-dipped galvanised
U-bolt: A2 stainless steel
Washers:
1, 2 & 3 Bolt: DIN 6796, conical spring washer, corrosion resistant
U-bolt: ASTM A666, 301 stainless steel Belleville
Nuts:
1, 2 & 3 Bolt: DIN 934 Steel 8.8 hot-dipped galvanised
U-bolt: DIN 439 stainless steel A2
Model | Conductor Cross-section (mm²) | Bolts |
CAPG-A1 | Cu 6-50 AI 16-70 | 1XM8X40 |
CAPG-A2 | Cu 10-95 AI 25-150 | 1XM8X45 |
CAPG-B1 | Cu 6-50 AI 16-70 | 2XM8X45 |
CAPG-B2 | Cu 10-95 AI 25-150 | 2XM8X50 |
CAPG-B3 | Cu 25-185 AI 35-200 | 2XM10X60 |
CAPG-C1 | Cu 6-50 AI 16-70 | 3XM8X45 |
CAPG-C2 | Cu 10-95 AI 25-150 | 3XM8X50 |
CAPG-C3 | Cu 25-185 AI 35-240 | 3XM10X60 |
CAPG-C4 | Cu 35-240 AI 35-300 | 3XM10X70 |
